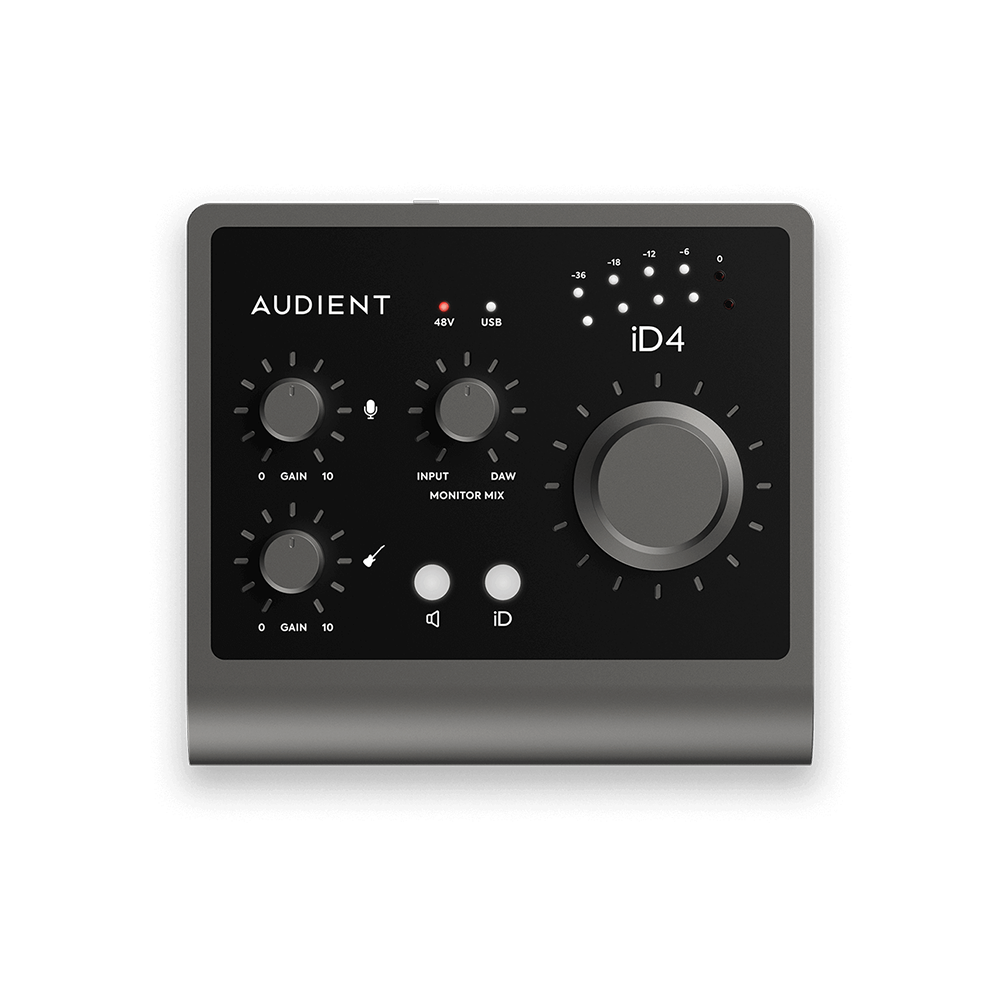

Audient iD4 (Mk2) Audio Interface

Audient iD4 (Mk2) Audio Interface

Regular price
Rs. 17,860.00
Sale price
Rs. 17,860.00
Regular price
Rs. 18,800.00
Sold out
Unit price
per
Tax included.

2in | 2out Audio Interface

Designed to take your recordings to the next level in every way, the iD4 (MKII) delivers professional audio performance in a compact and modern desktop package, giving you everything you need to make studio quality recordings at home.

Every iD interface features the Audient Console Mic Preamp, the same discrete circuit design found in our renowned recording console the ASP8024-HE. Designed to deliver ultra- low noise and low distortion with a touch of classic analogue warmth, iD4’s Audient mic pre will give you the professional sound you deserve.

Specifications

D.I / Instrument Input

RANGE: 40dB
LINEUP: 12dBu = 0dBFS
THD+N @ 0dBu: 0.1%
SNR: 100dBu A-Weighted
FREQUENCY RESPONSE – MIN GAIN ±0.5dB 10Hz to 20kHz

Microphone preamplifier

GAIN RANGE: 58dB
LINEUP: 12dBu = 0dBFS
MIC MAX INPUT LEVEL: 12dBu
MAX INPUT LEVEL: 21dBu
INPUT IMPEDANCE (Mic): 2.8k
INPUT IMPEDANCE (Line): >8k
THD+N @ 0dBu 0.00170%
THD+N @ 0dBu MAX GAIN: <0.04%
SNR: 101dBu A-Weighted
EIN: 129dB A-Weighted
CMRR @ 1k: >75dB
FREQUENCY RESPONSE – MIN GAIN ±0.5dB 10Hz to 40kHz

Analogue to Digital Converter

THD+N @ -1dBFS: 0.001%
DYNAMIC RANGE: 120dB A-Weighted
FREQUENCY RESPONSE: ±0.5dB 10Hz to 40kHz

Line Outputs (DAC):

LINEUP: 12dBu = 0dBFS
THD+N @ -1dBFS: 0.0006%
DYNAMIC RANGE: 125.5dB A-Weighted
CROSSTALK: >120dB
FREQUENCY RESPONSE: ±0.1dB 10Hz to 40kHz
1/4” TRS JACK: Tip (Hot), Ring (Cold) & Sleeve (Shield)

Headphone Outputs:

LINEUP: 18dBu = 0dBFS
THD+N @ -1dBFS: 0.0009%
DYNAMIC RANGE: 125.5dB A-Weighted
CROSSTALK: >116dB
FREQUENCY RESPONSE: ±0.1dB 10Hz to 40kHz
MAXIMUM LEVEL @ 30R: 2.59V Peak, 1.827V RMS, 223mW
MAXIMUM LEVEL @ 62R: 4.18V Peak, 2.95V RMS, 280mW
MAXIMUM LEVEL @ 600R: 7.72V Peak, 5.46V RMS, 100mW
1/4” TRS JACK: Tip (Left), Ring (Right) & Sleeve (Shield)

USB-C High Speed:

BUS POWER:
MIN REQUIREMENT: 0.9A @ 5V >=USB 3.0 Port
MAX REQUIREMENT: 1.5A @ 5V USB-C: Provides higher headphone outputs levels
No. of INPUT CHANNELS: 2 (2 Analogue)
No. of OUTPUT CHANNELS: 2 (2 Analogue)

DSP MIXER LATENCY ROUND TRIP (in-to-out):

44.1kHz 0.65mS
48.0kHz 0.6mS
88.2kHz 0.33mS
96.0kHz 0.31mS
