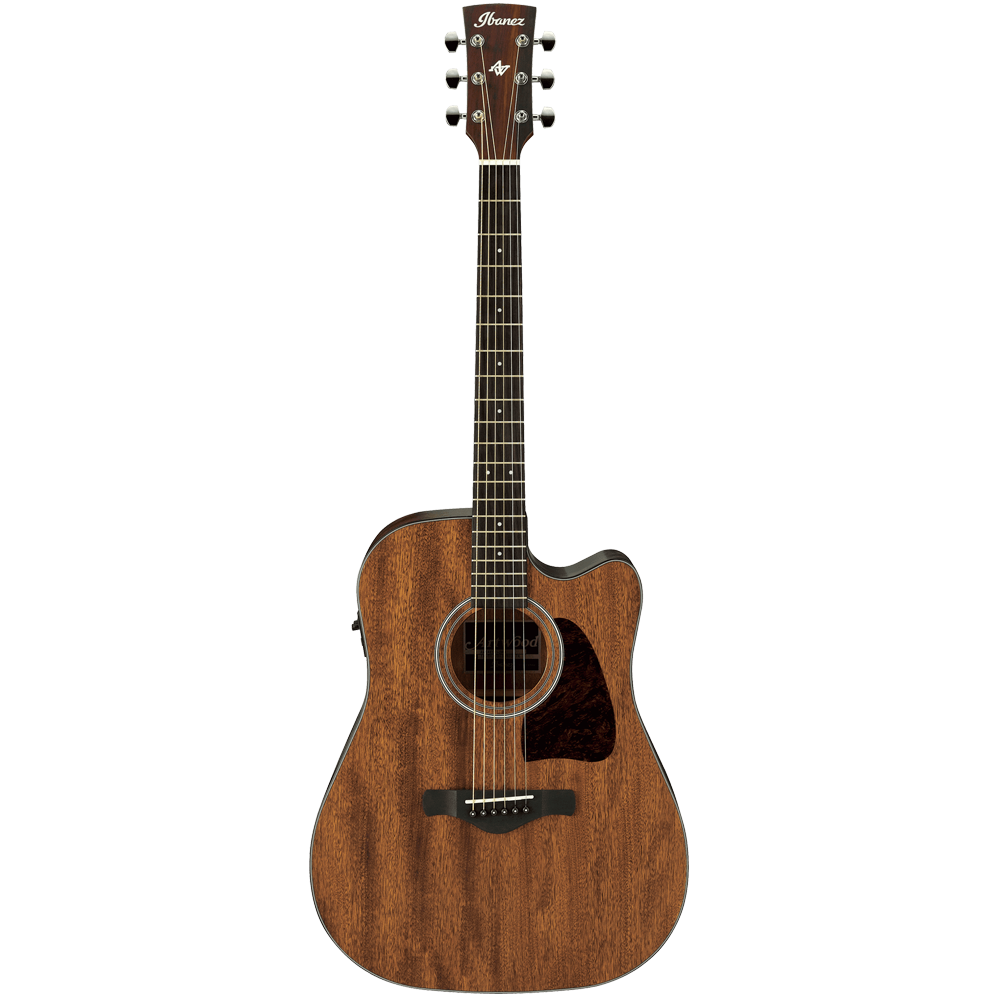

- Design: Dreadnought with cutaway
- Top: Solid okoume
- Back and sides: Okoume
- Neck: Nyatoh
- Fretboard and bridge: Ovangkol
- Scale: 651 mm
- Nut width: 43 mm
- Pickup system: Ibanez T-bar Undersaddle
- Ibanez AEQ-SP2 preamp with integrated tuner
- Machine heads: Chrome die cast
- Finish: Open pore
- Colour: Natural
NECK DIMENSIONS
- Scale : 651mm
- a : Width 43mm at NUT
- b : Width 55mm at 14F
- c : Thickness 21mm at 1F
- d : Thickness 22mm at 7F
- Radius : 400mmR
BODY DIMENSIONS
- a : Length 20"
- b : Width 15 3/4"
- c : Max Depth 5"
PREAMP
OTHERS
- Dovetail Neck Joint
FEATURES
Ibanez Advantage bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™, the pin and string stay put.
