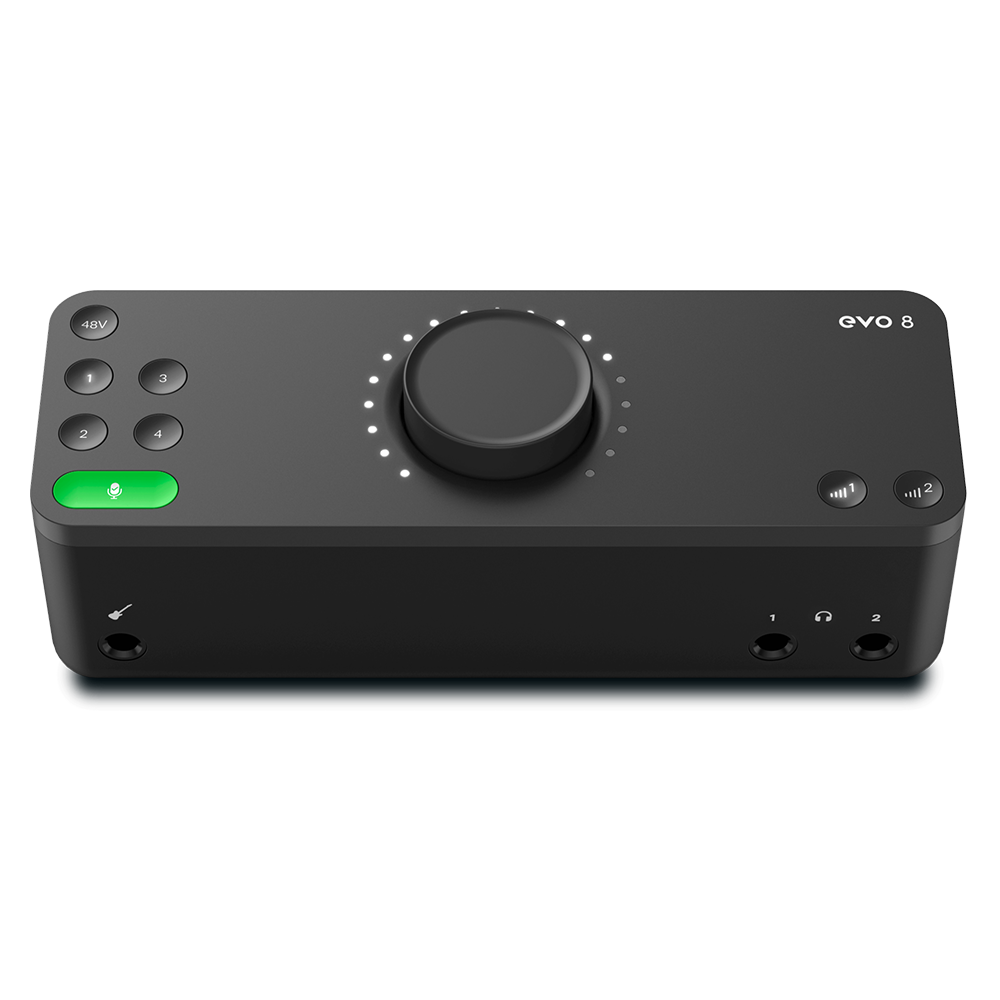

Audient EVO 8 Audio Interface

Audient EVO 8 Audio Interface

Regular price
Rs. 21,185.00
Sale price
Rs. 21,185.00
Regular price
Rs. 22,300.00
Sold out
Unit price
per
Tax included.


4x EVO Preamps
Get the most from your microphones with the warm and accurate EVO preamps – offering 58dB of gain range.


High Perfomance Converters
Hear your recordings more accurately than ever and make better mix decisions with 113dB of dynamic range.


Instrument Input
Plug your guitar or bass straight in through the JFET instrument input and start recording instantly.

Microphone Preamplifier

Mic Gain Range: 58dB
Line Gain Range: 58dB (-10dB pad)
Phantom Power: 48V +/-4V @ 10mA/Channel (only 2 channel available on USB-A host computers
Mic EIN: <-128dBu
CMRR: >85dB @ 1kHz
Maximum Input Level: +16dBu
Input Impedance (Mic): >3kΩ Balanced
Input Impedance (Line): >10kΩ Balanced
Frequency Response: +/-0.5dB 10Hz to 40kHz
Crosstalk: <-105dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): <0.0015%
SNR: 100dB
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)

D.I

D.I Gain Range: 58 dB
Maximum Input Level: +10dBu
Input Impedance: 1MegΩ Unbalanced
Frequency Response +/-0.5dB 10Hz to 20kHz
THD+N @ 0dBu (1kHz): <0.3%
SNR: 100dB
1/4” Jack: TIP (Hot) & SLEEVE (Shield)

ADC Inputs

Digital Reference Level: 0dBFS = +8dBu
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: -105dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.001%
Dynamic Range: 113dB A-weighted
DAC Outputs
Maximum Output Level: +11dBu
Digital Reference Level: 0dBFS = +11dBu
Output Impedance: <100Ω Balanced
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: <-110dBu @ 1kHz
THD+N @ -1dBFS (1kHz): <0.0015%
Dynamic Range: 113dB A-weighted
1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)

Headphone Output

Output Impedance: <50Ω
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: -110dBu @ 1kHz
THD+N @ -1dBFS (1kHz): <0.0015%
Dynamic Range: 113dB A-weighted
Max Level Into 30ohms: +0.5dBu, 0.0025% THD+N, 1.16Vpk Power: 45mW
Max Level Into 60ohms: +4.22dBu, 0.0015% THD+N, 1.78Vpk Power: 52mW
Max Level Into 600ohms: +10.1dBu, 0.0018% THD+N, 3.52Vpk Power: 20mW
1/4” Jack: TIP (Left), RING (Right) & SLEEVE (Shield)

DSP Mixer Roundtrip Latency:
(in to out)

44.1 kHz 0.594ms
48.0 kHz 0.552ms
88.2 kHz 0.302ms
96.0 kHz 0.281ms

DAW Playback Latency
@ 32 Sample Buffer for Software Instrument Playback

44.1 kHz ~2.5ms
96.0 kHz ~2ms

DAW Roundtrip Software Monitoring Latency
@ 32 Sample Buffer (in to out)

44.1 kHz 5ms
96.0 kHz 4.1ms
Latency – performance may vary as stability at these low buffer sizes is dependant on many factors including CPU load, operating system and performance of other drivers.

USB 2.0 High Speed

No. Of Input Channels 24 Analogue
No. Of Output Channels 4 Digital
Connector: USB Type-C
Included Cables: 1m USB 2.0 Type-C to USB Type-C
Weight & Dimensions
Weights: Unit: 0.475kg
Packaged: 0.815kg
Dimensions: Unit: 190mm (w) x 70mm (h) x 70mm (d)
Packaged: 230mm (w) x 105mm (h) x 95mm (d)
